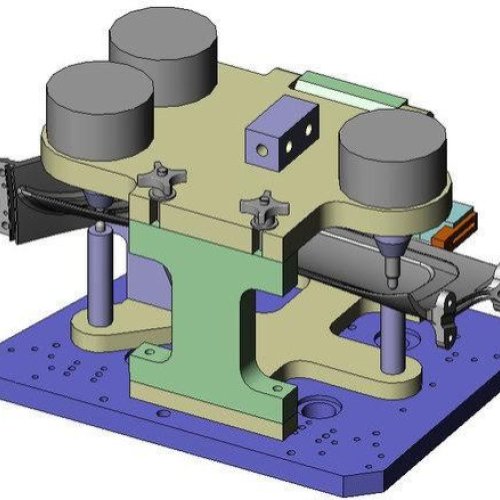

Fixture Design

We offer custom made fixtures that increase the loading options for testing multiple test objects on your shaker system. The 'L' and 'T' shape fixtures are used to provide a mounting surface perpendicular to the direction of the test apparatus. This eliminates the need of high cost slip table attachment where the test object can be mounted on the L or T fixture.

One of the least expensive method to perform multi-axis vibration testing is through the use of specially designed fixtures. These fixtures provide atleast one vertical mounting surface to allow two axes of vibration by rotation of the test article.

Our team can do fixture designing for your test applications. The designing of custom made fixtures is done after understanding the test application and doing the software simulation and analysis.
