Product Details

Max Deviation of specimen from table centre
30 mm
Utilities required
Plant air or bottled Nitrogen 6-8 bar 410V, 3 -phase 50 Hz

The machine is fabricated with Mild steel of a very robust design to provide necessary mechanical strength and rigidness. The machine produces the shock pulses using compressed air to force the platform to impact on the elastomer pads (Half-Sine Programmer Pads)which are placed between the platform and anvil of the impact area to produce half-sine pulses, Lead pellets are placed to generate sawtooth pulses and pneumatic cylinders are used to generate square pulses. The drop height and the air pressure are responsible to generate the desired acceleration.

Shock Test Machine is a versatile test equipment to carry out shock tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.

The lifting of the platform is done by pneumatic cylinders, the drop height is determined by the desired acceleration level. In a shock test due to the rebounce action secondary shocks may occur, which are totally unacceptable by most of the test standards. Fail safe brakes are used as a rebounce brake and as a quick release device to avoid secondary and tertiary shocks. The shock test machine is isolated from the ground by heavy duty shockers and shock absorbers. The Shock test machine is supported by a PC based intelligent Instrumentation system to control, monitor and analyse acquired shock test waveforms. The system has 4 channels to monitor the shock pulses generated which are expandable upto 16 channels.

Advantages for you
Customizable Reliable Solutions:Key features

  • Heavy duty structure
  • Adjustable drop height
  • Standard 4-channel signal conditioner upgradable to 16-channel
  • Adjustable Acceleration and pulse duration
  • Use of Shock Amplifier can be made to increase the change in velocity & acceleration upto 30,000 'g'
  • Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, JS55555 & ASTM etc.


Efficient performance:Key features

  • Pneumatic operation with low maintenance requirement
  • Fail safe brakes for no Secondary or Tertiary Shocks
  • Shock Response Spectrum Analysis
  • Shock tests in accordance with various international standards
  • Shock Response Spectrum Analysis
  • Shock tests in accordance with various international standards
  • Highly accurate repeatability
  • Ground is isolated from bumps generated


User Friendly:Key features

  • PC based control, monitoring and waveform analysis
  • Various safety interlocks for safe operation
  • Report generation feature


PC Based Instrumentation System
Shock-Test-Machine-control Tarang PC based instrumentation system provides an easy control, monitoring and waveform analysis to be done. The control of the machine is very user friendly and incorporates various safety interlocks for safe operation of the machine. The test report of any test performed can be viewed and printed easily. The Shock Analysis software is specially designed for the analysis of waveforms generated. Shock Response Spectrum Analysis can also be done with this software.

Yes! I am interested

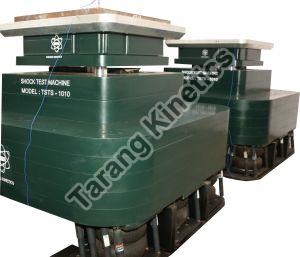

Pneumatic Shock Test Machine standard models

Model TSTS - 6060 TSTS - 7570 TSTS - 7575 TSTS - 1010
Table Size 600 x 600 mm 750 x 750 mm 750 x 750 mm 1000 x 1000 mm
Payload Capacity 200 Kg 250 Kg 500 Kg 1000 Kg
Payload Height unlimited unlimited unlimited unlimited
Max Payload Size 600 x 600 mm 750 x 750 mm 750 x 750 mm 1000 x 1000 mm
Insert Pattern 100 x 100 mm Matrix 100 x 100 mm Matrix 100 x 100 mm Matrix 100 x 100 mm Matrix
Stroke Length (Max) 300 mm 350 mm 350 mm 450 mm
Velocity Change No load 7 m/s 7 m/s 10 m/s 15 m/s
Velocity Change Full Load 5 m/s 5 m/s 8 m/s 8 m/s
Standard Test* 20’g’ – 11’ms’
30’g’ – 20’ms’
40’g’ – 6’ms’
50’g’ – 11’ms’ 50’g’ – 18’ms’
100’g’ – 6’ms’
150’g’ – 3’ms’
200’g’ – 3’ms’
Pulse Shape Half Sine Optional - Sawtooth / Square wave / Trapezoidal Waveform
Shock Rate 1-8 shocks/min 1-8 shocks/min 1-8 shocks/min 1-8 shocks/min
Max Deviation of specimen from table centre 30 mm 30 mm 30 mm 30 mm
Machine Mass 4000 kg 4500 kg 5500 kg 6500 kg
Dimensions (mm) 900*900*1500 1000*1000*1600 1000*1000*1600 1500*1500*2000
Utilities required Plant air or bottled Nitrogen 6-8 bar 410V, 3 -phase 50 Hz
Safety Interlocks Mains Input Over & Under Voltage, Phase drop, programmer pad change protection, over travel, Fail safe brake
