Vibration Test System
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, JSS 55555 & ASTM etc.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Signal to Noise Ratio | > 70dB |
| Power Efficiency | > 90% |
| Input Impedance | 10 Kohm |
| No of Channels | 4 Channels Upgradable upto 32 Channels |
Preferred Buyer From
| Location | Anywhere in India |
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Vibration test system is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Advantages for you
Customizable Reliable Solutions:Key features
- Low mass, High performance armature
- Various safety interlocks for safe operation.
- Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, Js55555 & ASTM etc.
Efficient performance:Key features
- Robust rolling strut suspension
- Efficiency is greater than 90%.
- High Signal to noise ratio.
User Friendly:Key features
- Touch Screen based Digital Amplifier Controller
- Trunion mounted shaker for easy integration with slip table
- Modular in design for easy and quick operation
- Air spring body isolation
Universal Compatibility:Key features
- Compatible with all worldwide controllers
- Option for Chamber integration
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Signal to noise ratio | > 70dB |
| Power efficiency | > 90% |
| Input Impedance | 10 Kohm |
| Input Sensitivity | 4vrms, Compatible with all Standard Controllers |
| No of Channels | 4 Channels Upgradable upto 64 Channels |
Preferred Buyer From
| Location | Anywhere in India |
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Vibration test system is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Advantages for you
Customizable Reliable Solution:Key features
- Low mass, High performance armature
- Various safety interlocks for safe operation.
- Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, Js55555 & ASTM etc.
- Long stroke with displacement upto 75mm.
Efficient performance:Key features
- Robust rolling strut suspension
- Efficiency is greater than 90%
- High Signal to noise ratio
- Auto Centring of Armature
User Friendly:Key features
- Touch Screen based Digital Amplifier Controller
- Trunion mounted shaker for easy integration with slip table
- Modular in design for easy and quick operation
- Air spring body isolation
Universal Compatibility:Key features
- Compatible with all worldwide controllers
- Option for Chamber integration
| Business Type | Manufacturer, Exporter, Retailer, Wholesaler |
| Payload Capacity | 600 Kg |
| Stray magnetic field (150mm above table) | <1mT |
| Signal to noise ratio | > 70dB |
| Power Efficiency | > 90% |
| Input Impedance | 10 Kohm |
| Input sensitivity | 4Vrms, compatible with all standard controllers |
Preferred Buyer From
| Location | Anywhere in India |
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Vibration test system is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Advantages for you
Customizable Reliable Solutions:Key features
- Wide Dynamic Range
- Low mass, High performance armature
- Various safety interlocks for safe operation
- Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, Js55555 & ASTM etc.
- Long stroke with displacement upto 75mm
Efficient performance:Key features
- Robust rolling strut suspension
- Efficiency is greater than 90%
- High Signal to noise ratio
- Auto Centring of Armature
User Friendly:Key features
- Touch Screen based Digital Amplifier Controller
- Trunion mounted shaker for easy integration with slip table
- Modular in design for easy and quick operation
- Air spring body isolation
Universal Compatibility:Key features
- Compatible with all worldwide controllers
- Option for Chamber integration
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Max Acceleration Bare Table (Sine) | 100'g' |
| System Velocity (Sine) | 2 m/s |
| Max Displacement (peak to peak) | 38/51mm |
| Useful Frequency Range | DC to 2.0KHz |
| Stray magnetic field (150mm above table) | <1mT |
Preferred Buyer From
| Location | Anywhere in India |
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Vibration test system is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Advantages for you
Customizable Reliable Solutions:Key features
- Low mass, High performance armature
- Various safety interlocks for safe operation
- Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, Js55555 & ASTM etc.
Efficient performance:Key features
- Robust rolling strut suspension
- Efficiency is greater than 90%
- High Signal to noise ratio
- Auto Centring of Armature
User Friendly:Key features
- Touch Screen based Digital Amplifier Controller
- Trunion mounted shaker for easy integration with slip table
- Modular in design for easy and quick operation
- Air spring body isolation
Universal Compatibility:Key features
- Compatible with all worldwide controllers
- Option for Chamber integration
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Country of Origin | Made in India |
| Power Source | Electric |
| Body Material | Mild Steel |
| Frequency (Hz) | 50 Hz |
| Finishing | Powder coated |
| Frequency | 50-60 Hz |
Preferred Buyer From
| Location | Anywhere in India |
The Integrated system are meant for applications that demand accelerated multi environment test systems. The integrated testing ascertains the reliability and endurance of the test units by simulating environmental conditions as they are. The vibratrion shaker slips over the rail guide and combines with the chamber. Both the systems can be used in integrated configuration else both systems can be utilized individually as well.
These are customizable solutions and as per the exact requirement of the customer the system parameters of the Integrated system can be configured.
Vibration Intergrated Chamber is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Material | Metal |
| Finishing | Polished |
| Shape | Rectangular |
| Color | Silver |
| Application | Industrial Use |
| Feature | Easy To Place, Fine Finishing |
Preferred Buyer From
| Location | Anywhere in India |

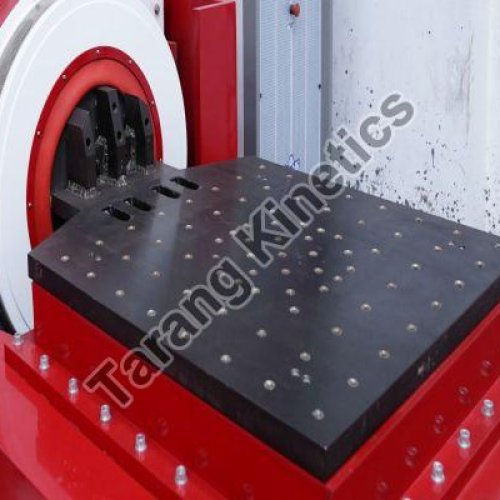

`TARANG' Combo Base Horizontal Slip Table eliminates the necessity for supporting test specimens by complicated exures and permits simplified transnational motion for testing the components in both horizontal axes X & Y, without disturbing the orientation of tests objects.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
Preferred Buyer From
| Location | Anywhere in India |
Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, JSS 55555 & ASTM etc.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Vibration Controller
The Digital Vibration controller is used to simulate actual field vibration conditions at test laboratory in a controlled manner so as to reproduce the same vibration atmosphere.
The controller is capable of full control and analysis applications for sine, resonance & dwell, random, classical shock, random-on-random, sine-on-random, shock SRS, vibro-shock and field data replication.
Head Expander and Slip Tables
Our range of wide variety of head expanders and slip tables provides various possibilities to increase the effective mounting surface and orientation of the direction of test.
Mg Alloy is used for the construction of head expander s and slip tables to ensure minimal weight thereby being more suitable to the existing force of the system.
Customizable Reliable Solutions
- Long stroke with displacement up to 76 mm
- High Velocity with velocity up to 2. 4 m/s
- Low mass, Magnesium Alloy Armature Structure
- Various safety interlocks for safe Operation
- Capable to perform tests in accordance with Various standards eg. IS, MIL, DIN, ISO, EN, IEC, Def , JSS 55555 & ASTM etc.
Efficient performance
- PC based Remote Operation of Power Amplifier
- Auto-Resume from power failure
- Robust rolling struct suspension
- Efficiency is greater than 920/o
- High Signal to noise ratio
- Auto Centring of Armature
- Self-Lubricating Armature Guidance Bearing
User Friendly
- Touch Screen based Digital Amplifier Controller
- Trunion mounted shaker for easy integration with slip Table for X-Y Axis Testing
- Modular in design for easy and quick operation
- Body Isolation using Air Bellows for Vibrations from Shaker
Universal Compatibility
- Compatible with all worldwide controllers
- Integration with Environmental Chamber
